New Steering Box ordered for 84 280GE
Well I've picked up my Wagon from it's home in Wales and the sloppy drive home (coupled with a little reading here) has convinced me to order a new steering box at circa £3088 + VAT. I'll let you know if that stops it driving like a 1960s Caddy!
Hello ToneThePhone,
It was very bold of you to go ahead and order a steering box.
Several points here. Firstly, please DO not scrap your old unit; I would like you to store it for a time a re-conditioner can remanufacture this box.
Steering box replacement has not been heard of by my experience. Have you checked wheel bolt security, tyre pressures all round, for wheel bearing play, track rod and drag link end play, security of steering column UJs, one in the cab and the other by the steering box? Or control arm bush condition? All these can factor in a sloppy drive.
Please do check all of these before renewing your box.
Please report on these points and let us parley.
Thank you for your replyTony and welcome to the family of G-Wagen Owners.
What wheel size are you running on?
I'm not sure what the wheel sizes are but they are standard MB alloys that were specified extras at the original point of sale. As the engine, chassis & interior are so good I intend to keep everything standard.
Tony. Try new FRONT control arm bushes from Mercedes 1st. I never changed these. Also new correct Merc front springs rears are new. Chassis number needed at mercs. Talk to Gav about parts. Save some cash or lend me it for my new engine! Thats all it needs. Tweak the adjuster bolt once done and get some Konis.
(I'm real) D
He's on 15 inch alloys and standard pressures.
Does this happen to be Montreal's 280GE? (Mr Smith)
1984
280ge
Astral Silver
7x15 alloys code R78
Gav
The real Montreal just left the building....posted just before me....
The LS2 is a very fine commercial vehicle steering box used from the 1960's on - think 508 van etc
I have known two leak and once saw one fail because backlash adjuster was over tightened.
This design always has a small amount of free play which should NOT be adjusted right out
They are straight foward to rebuild
I have several which can be bought
Well I've picked up my Wagon from it's home in Wales and the sloppy drive home (coupled with a little reading here) has convinced me to order a new steering box at circa £3088 + VAT. I'll let you know if that stops it driving like a 1960s Caddy!
Are you seriously going to spend £3750 on a steering box for a 1984 460
You need to have a chat with a few knowledgeable people on this site who will be able to solve your problems for a fraction of that price. G ownership doesn't have to cost a fortune with the right help.
I collected the new steering box today and hope to get it fitted tomorrow. I'm having it stripped down and quite a few things replaced for new MB parts including a few body panels.I've alreay got all of the regular service items like filters, belts, plugs but we're in stripping down mode at the moment. We're hoping to retain the original alternator by reconditioning. When we are happy with the mechanicals it is being stripped and fully painted in the original silver.
I'm not used to driving 2nd hand cars especially 30 year old ones so I want to make it like it was when it was new. I just see myself as the current custodian who will bear the costs of renovation instead of the usual depreciation. I like my vehicles to be "Bob on" so that I can enjoy their use and I'm currently migrating from one of these http://www.tonyraynor.co.uk/must-have-advice-for-british-drivers-in-france/
The steering box arrive in the most serious of wooden packing crates like a case of fine wine. Pictures tomorrow ....
Regards
Tony
.jpg)
So it's called a steering box because it arrives in a box!

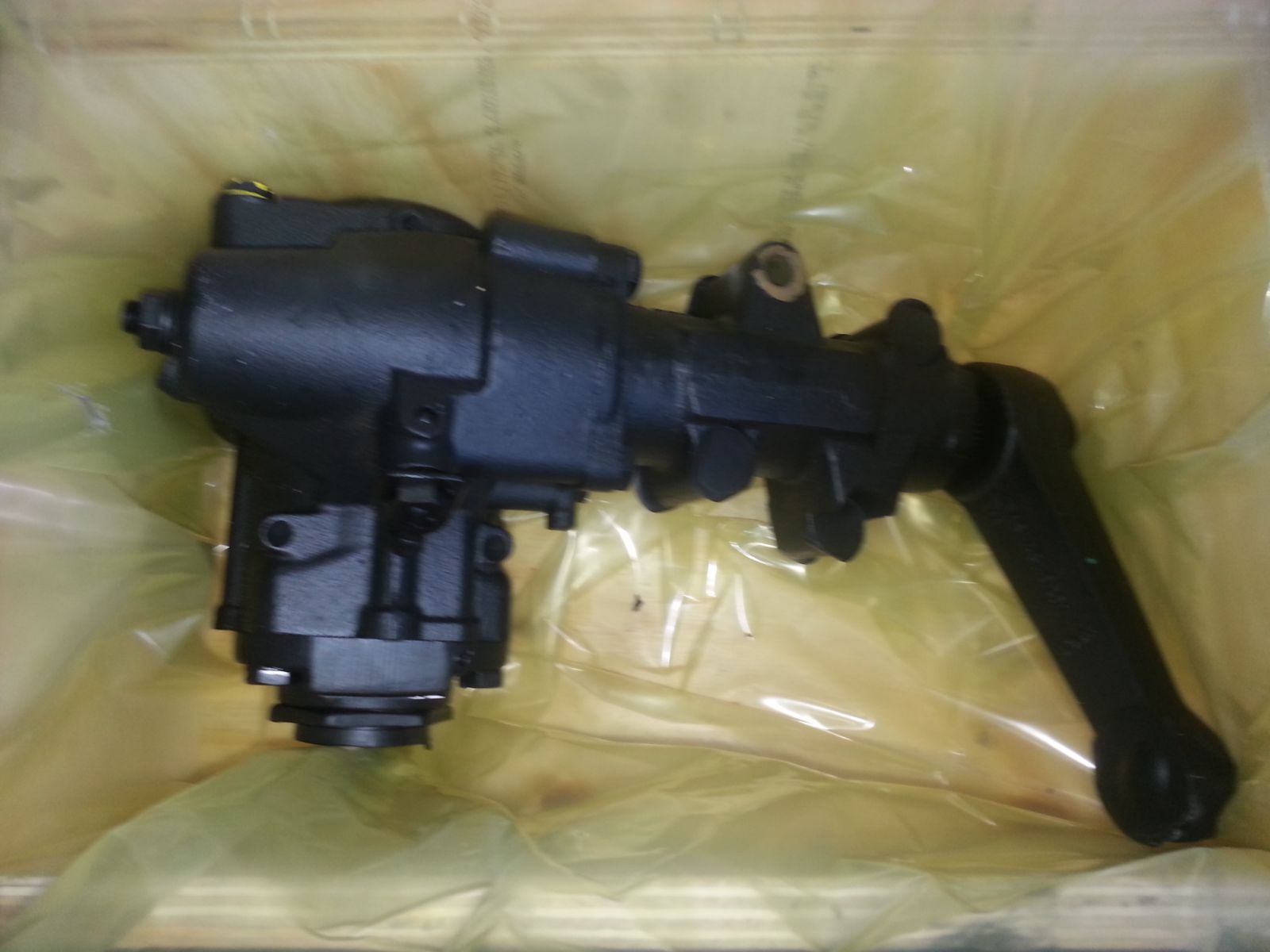

This is what a brand new steering box looks like (not at all boxy)!
Nice looking box...i didnt think i would ever see anybody buy one of these in the UK!!!
I hope you pushed the dealer for 20% discount!?!
Gav
I have negotiated discounts with the dealer but didn't get 20%
After 3 weeks in the workshop I have just driven the car on a motorway with its new steering box. The steering wheel is perfectly aligned now and the play is eliminated. I will send the old steering box for refurbishment when the renovation is finished and offer it for sale here at some point.
However I’m now critical of the sponginess at the front end so I will post separately about upgrading the shocks and springs for something more befitting of the road use that I will be using it for.
JOIN THE GWOA
This website and forum are provided for the benefit of enthusiasts and owners of all Mercedes Benz off road vehicles, in particular the G Wagen. The costs of development, upkeep and provision of the site are met entirely by the annual subscriptions of club members. If you are using the site and are not a member of the G Wagen Owners Association please consider joining. You will have access to areas on the site that are not open to non members, to club trips and meetings and to technical assistance. In addition your contribution (only £25 annually) will help us maintain and develop our website for future users.
Who's new
- Jaffa_JIM_23
- Wrabstar
- GG
- KTMSCANIA22
- 280ge
Hi,
The track rods and drag links were recently replaced by the previous owner and are clearly visible. He also provided a load of MB receipts.
I don't know what the steering column UJs are but I'll definately get my mechanic to check these when he changes the steering box.
If the control arm bushes are big yellowish nylon washer type things they are clearly new.
It definately wasn't a tyre pressure or wheel nut issue as the steering wheel did move around several inches without effect. It was like a driving a big yanky sloppy sausage.
I think that the previous owner had tried changing everything including springs and dampers to avoid having to change the steering box.
I will save and offer for sale the old stuff to help fund the really costly bits which are yet to come. The engine is sweet but I want an original respray and new rubber strips, glass rubbers, etc.
Regards
Tony
