Gwagon on unimog axles

23 replies [Last post]
dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham

A few pic's of my G

Anyone else done this?

Login or register to view attached files
twodogs
twodogs's picture
Offline
Joined: 10.04.2004
Location: Dudley, West Midlands
GWOA Groups: Members
Re: Gwagon on unimog axles

portal axles hmmm,
was it a big job ?
looks a real beast
Cliff

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

twodogs wrote:
portal axles hmmm,
was it a big job ?
looks a real beast
Cliff

It wasn't really too bad, me and the last owner fitted the axles in 3 weeks of nghts and 2 weekends. We then took it over to ireland to do the three peaks challenge, where we had a run of bad luck that saw us dropping out wth almost no drive from the auto box and a very sick engine.

I've now bought it, and i've spent the last month or so bringing it up to a spec i'm happy with. It is going to have a landrover 300tdi in it when i've finished.

here's a link to my "buldup" thread on another forum,
G buildup thread

peter perfect
peter perfect's picture
Offline
Joined: 07.11.2003
Location: Bahrain
GWOA Groups: Members
Re: Gwagon on unimog axles

why a diesel and not a nice merc 5ltr V8 with auto box. its not going to be your every day driver, stuff the diesel stick with a V8. who was the last owner, never seen it around in any events i have been on.

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

peter perfect wrote:
why a diesel and not a nice merc 5ltr V8 with auto box. its not going to be your every day driver, stuff the diesel stick with a V8. who was the last owner, never seen it around in any events i have been on.

Sorry mate i just carn't do it to myself, I've got a bit of a water fetish you see and petrols just carn't cut it.

Anyway you don't know what your missing, you only get to drive around on the dry bits of a site.

The last owner was Lee Bond, he built the car about 18 months ago. And as far as i know has used it quite a few times in anger.

mortinson
mortinson's picture
Offline
Joined: 05.11.2003
Location: Old beehive, Madrid, Spain
Re: Gwagon on unimog axles

dirtydiesel wrote:
peter perfect wrote:
why a diesel and not a nice merc 5ltr V8 with auto box. its not going to be your every day driver, stuff the diesel stick with a V8. who was the last owner, never seen it around in any events i have been on.

Sorry mate i just carn't do it to myself, I've got a bit of a water fetish you see and petrols just carn't cut it.

Anyway you don't know what your missing, you only get to drive around on the dry bits of a site.

The last owner was Lee Bond, he built the car about 18 months ago. And as far as i know has used it quite a few times in anger.

I hear what you say but I would put whatever Mercedes diesel lump I can get hold of in it before committing the sacrilege of using a L*** R**** engine!

mortinson
mortinson's picture
Offline
Joined: 05.11.2003
Location: Old beehive, Madrid, Spain
Re: Gwagon on unimog axles

Did you really do this?

What for? :shock:

peter perfect
peter perfect's picture
Offline
Joined: 07.11.2003
Location: Bahrain
GWOA Groups: Members
Re: Gwagon on unimog axles

Lee bond hey, I know him, he built Steve lloyds beast. Water and pertol engine dont mix, you must mean the rover V8. Had my 280 under water and never missed a beat. however I prefer to stay out of water, gets in every where, diesel or no diesel.

Lee gets bored on projects, why did he not pursue this or has he another project on the go.

peter perfect
peter perfect's picture
Offline
Joined: 07.11.2003
Location: Bahrain
GWOA Groups: Members
Re: Gwagon on unimog axles

Jesus, there is a method in his madness, wait until you see the new G from Baskill/Needham off road team. WATCH THIS SPACE.

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

mortinson wrote:
Did you really do this?

What for? :shock:

I take it that you havn't read the captions that go with the pics.

But if you haven't; the original chassis rails strength had been compremised and there wasn't enough space to get the steering and suspension "right" on the standard g front end. So off they came, simple as!

And my front chassis rails are now 36" of the ground.

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

peter perfect wrote:
Lee bond hey, I know him, he built Steve lloyds beast. Water and pertol engine dont mix, you must mean the rover V8. Had my 280 under water and never missed a beat. however I prefer to stay out of water, gets in every where, diesel or no diesel.

Lee gets bored on projects, why did he not pursue this or has he another project on the go.

This motor just pushed lee to far, it was just begging to be sold,
And it didn't fit down his drive it's too wide and too high.

Carn't do this with a petrol, and with the price of merc ancilleries i couldn't afford to do it with a merc diesel.

mortinson
mortinson's picture
Offline
Joined: 05.11.2003
Location: Old beehive, Madrid, Spain
Re: Gwagon on unimog axles

dirtydiesel wrote:
mortinson wrote:
Did you really do this?

What for? :shock:

I take it that you havn't read the captions that go with the pics.

But if you haven't; the original chassis rails strength had been compremised and there wasn't enough space to get the steering and suspension "right" on the standard g front end. So off they came, simple as!

And my front chassis rails are now 36" of the ground.

OK. point taken. I'll trust you and Ian until I see the end result.

And no... I don't read L*** R**** forums. They are taboo for me

peter perfect
peter perfect's picture
Offline
Joined: 07.11.2003
Location: Bahrain
GWOA Groups: Members
Re: Gwagon on unimog axles

so DD, do you actually get a kick out of being neck deep in water???. Strange. Anyhow seeing as there is a an 8274 nesting its self on the back, I guess one will be showing itself on the front? is this going to be a challenge vehicle then?? or a semi submarine.

What did Lee have in it as engine and gearbox before you had it.

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

peter perfect wrote:
so DD, do you actually get a kick out of being neck deep in water???. Strange. Anyhow seeing as there is a an 8274 nesting its self on the back, I guess one will be showing itself on the front? is this going to be a challenge vehicle then?? or a semi submarine.

What did Lee have in it as engine and gearbox before you had it.

There's nothing quite like driving through water up to your neck!!

The winch on the back isn't actually an 8274, it's its predecessor the warn/belleview m8000.

It will be prepared to challenge spec, but will proberbly not see that many events. I am going to try and get it to the three peaks this year and i might be tempted to do a few one day events.

But apart from that i'll use it for trialling, play days and maybe a bit of laneing.

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

Lee had a all singing all dancing 4.0 rover in it mated up to a merc autobox.

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

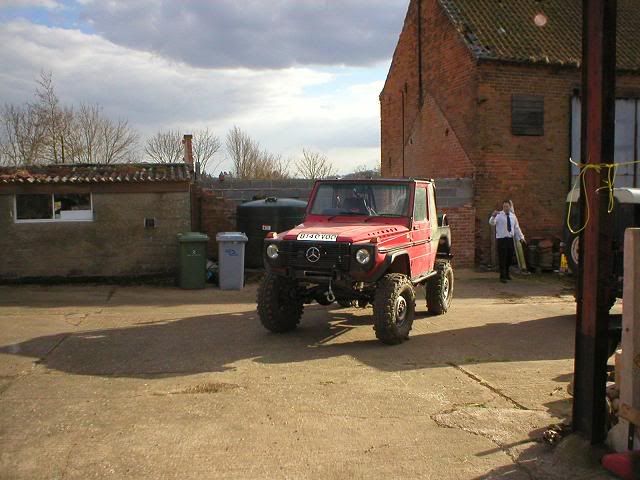

few pics outside today!

kashi123
kashi123's picture
Offline
Joined: 06.11.2003
Re: Gwagon on unimog axles

Looks fantastic!!!
What is the gearing like can you still reach and maintain reasonable roadspeed?
I am asking because I have sort of 'inherited' a pair of Mog axles and it would be rude not to do anything with them!

Thanks

Richard

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

Low is very good, crawl ratio of 70:1

It will be geared for;

41mph @ 2000rpm
62mph @ 3000rpm

the red line is set at 4750rpm so top speed of 98mph.

peter perfect
peter perfect's picture
Offline
Joined: 07.11.2003
Location: Bahrain
GWOA Groups: Members
Re: Gwagon on unimog axles

looking good, are you giving it a complete makeover and paint then?. When will it be finished, would like to do an article for the mag, although I might not mention it has a TDI, might make something up, errrr, its a G55k engine in it or something.

Whos doing the fabrication on the rear??

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

peter perfect wrote:
looking good, are you giving it a complete makeover and paint then?. When will it be finished, would like to do an article for the mag, although I might not mention it has a TDI, might make something up, errrr, its a G55k engine in it or something.

Whos doing the fabrication on the rear??

It's probabley best you don't scare the luddites with a proper engine.

I've done all the fab work everywhere!!!!!

It's going to be fully repainted in the original red, if anyone has the paint code it'd be nice?

The engine bay has allready been painted in low gloss black,as has the rear load bay and cage

mercfan
mercfan's picture
Offline
Joined: 31.07.2004
Location: Hertfordshire
GWOA Groups: Members
Re: Gwagon on unimog axles

Never had the two side-by-side. Is there a lot of work involved with the steering gear, mountings, spring seats/locations, etc? Also which model 'mog did you use the axles of?

dirtydiesel
dirtydiesel's picture
Offline
Joined: 21.03.2006
Location: nottingham
Re: Gwagon on unimog axles

mercfan wrote:
Never had the two side-by-side. Is there a lot of work involved with the steering gear, mountings, spring seats/locations, etc? Also which model 'mog did you use the axles of?

The simple answer is, lots and lots and lots!

The axles are off a 404.

peter perfect
peter perfect's picture
Offline
Joined: 07.11.2003
Location: Bahrain
GWOA Groups: Members
Re: Gwagon on unimog axles

nice fab work, fancy doing mine, too busy myself.

mgrays
mgrays's picture
Offline
Joined: 07.11.2005
Location: Aberdeen Scotland
GWOA Groups: Members
Re: Gwagon on unimog axles

Some new photos to me and maybe some of you..

G-Mogs

http://www.unimogfreunde.de/Bildergalerie/Klaus/GMog/Stolz.JPG
http://www.unimogfreunde.de/kleinanzeigen/Frame_daueranzeigen.htm
http://www.unimogfreunde.de/Filme/film2006.wmv

6 bolt wheels so maybe a 406?.. not sure on 401 wheels

And the same nice pair with a U2050
